YX54-321-960 Deck Roll Forming Machine Metal Deck Panel for Steel Construction

YX54-321-960 Deck Roll Forming Machine Metal Deck Panel for Steel Construction

Λεπτομέρειες:
Τόπος καταγωγής:	Κίνα
Μάρκα:	NKH MACHINERY
Πιστοποίηση:	CE/SONCAP/CSA
Αριθμό μοντέλου:	ΥΧ54-321-960
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min:	1 μονάδα
Τιμή:	Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες:	Γυμνά φορτία για ρολό πρώην με κόπτη σε εμπορευματοκιβώτιο 40ft, ξύλινο κουτί για υπουργικό συμβούλι
Χρόνος παράδοσης:	90 εργάσιμες ημέρες
Όροι πληρωμής:	L/C, D/A, D/P, T/T
Δυνατότητα προσφοράς:	5 μονάδες/μήνας

Επικοινωνήστε

Λεπτομερής ενημέρωση
Ονομα:	Ρόλος γεφυρών μετάλλων που διαμορφώνει τη μηχανή	Σύστημα Ελέγχου:	Σύστημα ελέγχου PLC
Πρώτη ύλη:	GI, φύλλα Alu-zinc, 345Mpa κανονικά	Διάμετρος άξονα:	95 χιλιοστά
Υλικό κυλίνδρου:	45# χάλυβας, σκληρό χρώμιο που ντύνεται	Υλικό λεπίδας κοπής:	Cr12MOV, Θερμική επεξεργασία

Περιγραφή προϊόντων

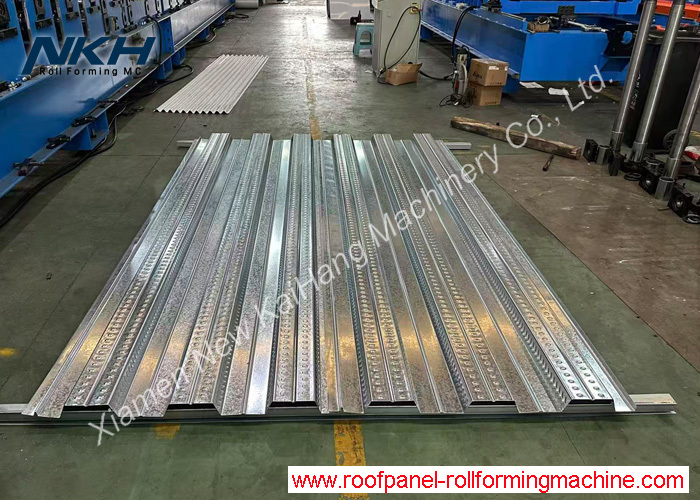

Metal floor decking roll forming machine, 54mm height rib, composite metal deck panel

YX54-321-960 Deck Roll Forming Machine Metal Deck Panel for Steel Construction 0

Quick Detail:

Thickness : 0.8-1.2mm
Material : Galvanized sheets, G350-550
Coil width : 1219/1250mm
Effective width: 960mm
Material weight : 5tons, 6tons, 7tons, 8 tons, 10tons
Coil inner diameter : 510mm+/-+30mm
Driven way: by driven motor
Cutting way: by hydraulic group
Cutting tolerance : ±1mm

Application:

Steel roof deck: The steel roof decks are manufactured generally for the construction of pitched, flat, or curved roofing almost on all kinds of buildings;
Composite metal deck: The composite metal decks have embossments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system.
Metal form deck: Metal form decks are produced and used extensively also in floor construction as a permanent steel base for poured reinforced concrete floor slabs.
Architectural deck: This kind of steel deck offers architects and engineers the ability to create amazing designing for striking and spacious interiors, as well as dramatic and high-performing exteriors.
Bridge deck: Where a bridge has main beams installed at suitable centers, steel decking may be placed across the beams without additional supports, suitable for new construction and bridge rehabilitation.

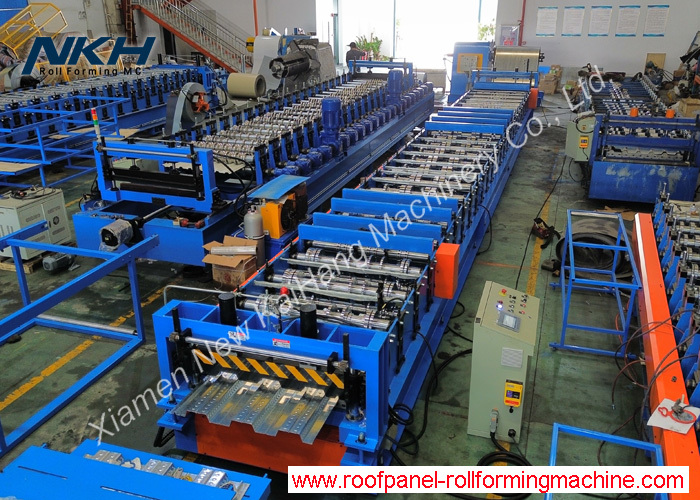

Description/Technical Parameter details of complete line:

5TX1250mm Hydraulic de-Coiler with/without coil car

Expansion system by hydraulic group, Pump motor: 3KW

Driven motor to run the coil, Motor: 3KW

Coil Inner-diameter=510+/-30mm

Coil width = Max.1250mm

Taper wedge expand type

Load capacity = Max. 5Tons

Snubber arms on top by pneumatic or hydraulic as per order

The coil car included or exclude as per order

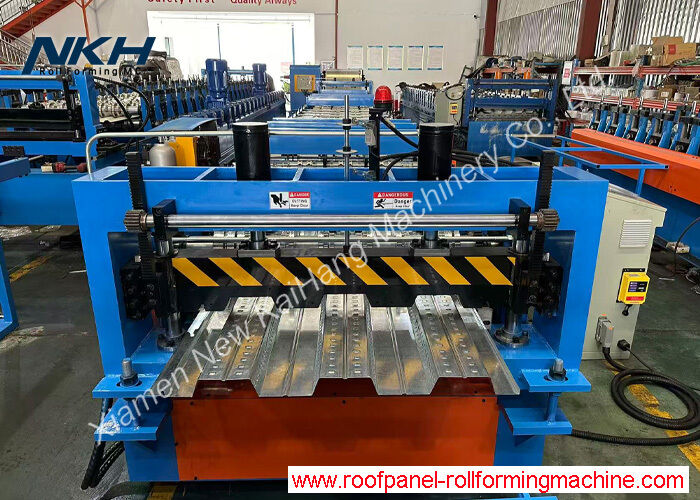

Roll forming machine with cutting details as below table :

Suitable roll forming material	GI/Alu-Zinc sheets
Thickness	0.8mm-1.2mm
Coil input width	1219/1250mm
Carriage Frame design	Wall-plate-frame-design Wall plate thickness 18mm
Roll forming stations	26 stages

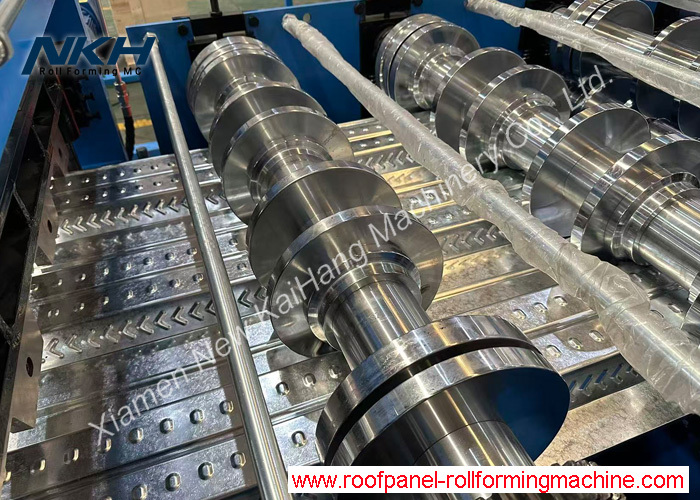

Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ95mm
Main motor power	18.5Kw×2 with reducer or higher
Roll forming speed	12-15 m/min as standard design
Hydraulic group power	5.5 Kw
Material of cutting blade	Cr12, heat treatment
Cutting design	After cut-off, there is waste
Electric Voltage Standard	380V/50Hz/3PH or as per request
Major Color of Machine Painted	RAL 5015(Blue) or as requirements
